IP65 LED Downlight
Main Specifications
Model Number
GL-DLB
Material
Die-casting Aluminium Housing+PMMA Diffuser
Protection Level
IP65
Light Efficiency
90 lm/W
Lifetime
50000 hrs
MOQ
100
Light Source
Cob
CCT
2700k 6500k
Beam Angle
120°
Driver Brand
Other
Sensor
No
Warranty
3years, 5years
Installation
Recessed mounted, Flush mounted
Chat on WhatsApp
Reply within 12 hours. Custom OEM/ODM available.

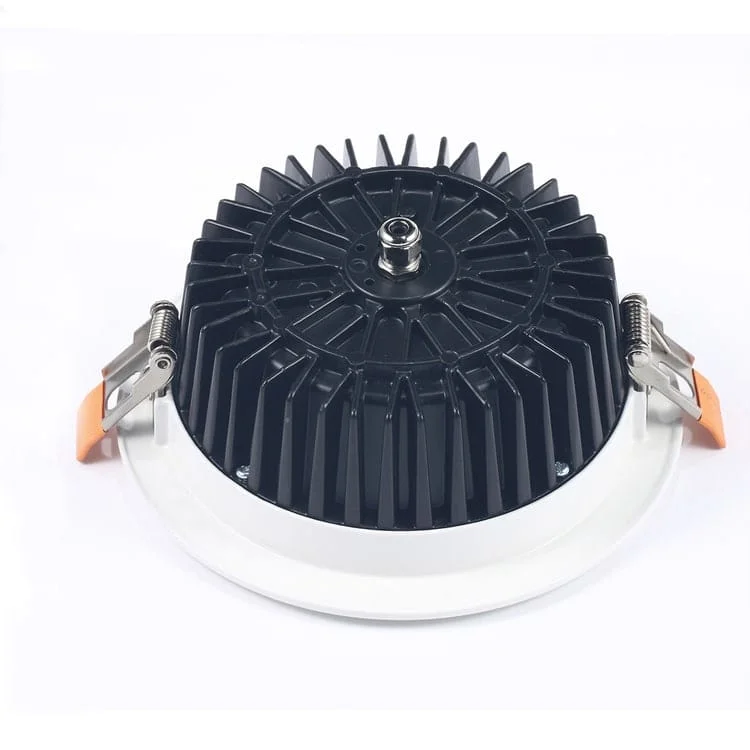

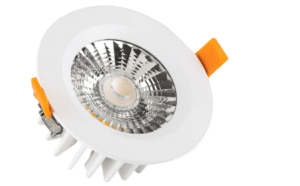

IP65 LED Downlight
This IP65 LED downlight with high lumen output, compact and elegant design. Unique structure of aluminium housing, excellent heat dissipation performance. IP65 rated version make it more stronger and wider use in an tough environment。Construction & Materials
Die-casting aluminium housing. Powder coating finish. With high luminous efficiency COB/SMD LEDs can achieve a perfect lighting solution. No UV or IR, can protect commodities properly, to avoid the color fading from radiation. Waterproof LED driver is connected externally. Easy for installation and maintenance.Our IP65 COB LED Downlights for bathrooms provide fully sealed waterproof and dustproof performance for all humid bathroom spaces, including shower zones, vanity lighting, and en-suite washrooms. There are two types – COB source with PMMA cover, and IP54 SMD LED chips with an opal PC cover.
Installation
To speed up the installation, we need to note about the precise cut-out hole. This series has a range of product diameter 115 mm-230 mm and requires 95 mm—220 mm cut-out hole. It’s mains-powered with a waterproof Led driver, eliminating the need for a separate transformer.| Model Number | Power | Product Diameter | Cut-out Hole |
|---|---|---|---|
| GL-DLB3 | 7-10W | ø115×H50mm | ø95-100mm |
| GL-DLB4 | 12-15 W | ø145×H60mm | ø125-130mm |
| GL-DLB5 | 18 W | Ø160×H60mm | ø140-145mm |
| GL-DLB6 | 20-25 W | Ø190×H60mm | ø165-175mm |
| GL-DLB8 | 30-40 W | Ø230×H75mm | ø200-215mm |
