COB IP65 recessed led downlight

Main Specifications

Model Number GL-WDC

Power Factor 0.9

Material Die-casting Aluminium Housing+PC Lens

Protection Level IP65

Light Efficiency 80 lm/W

Lifetime 50000 hrs

MOQ 50

Light Source Cob

CCT 2700k 6500k

Driver Brand Other

Sensor No

Warranty 3years

Installation Recessed mounted

Chat on WhatsApp

Reply within 12 hours. Custom OEM/ODM available.

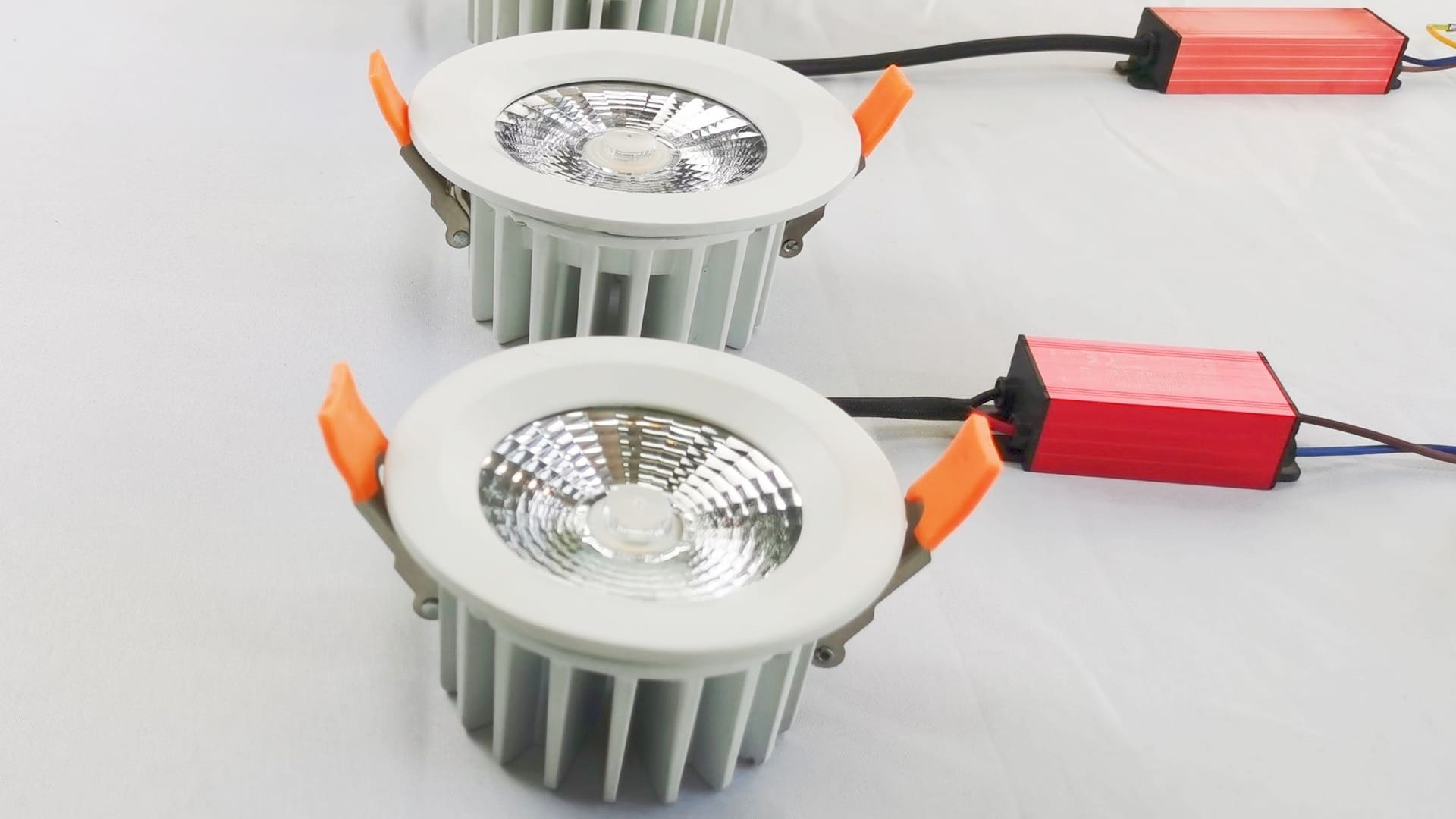

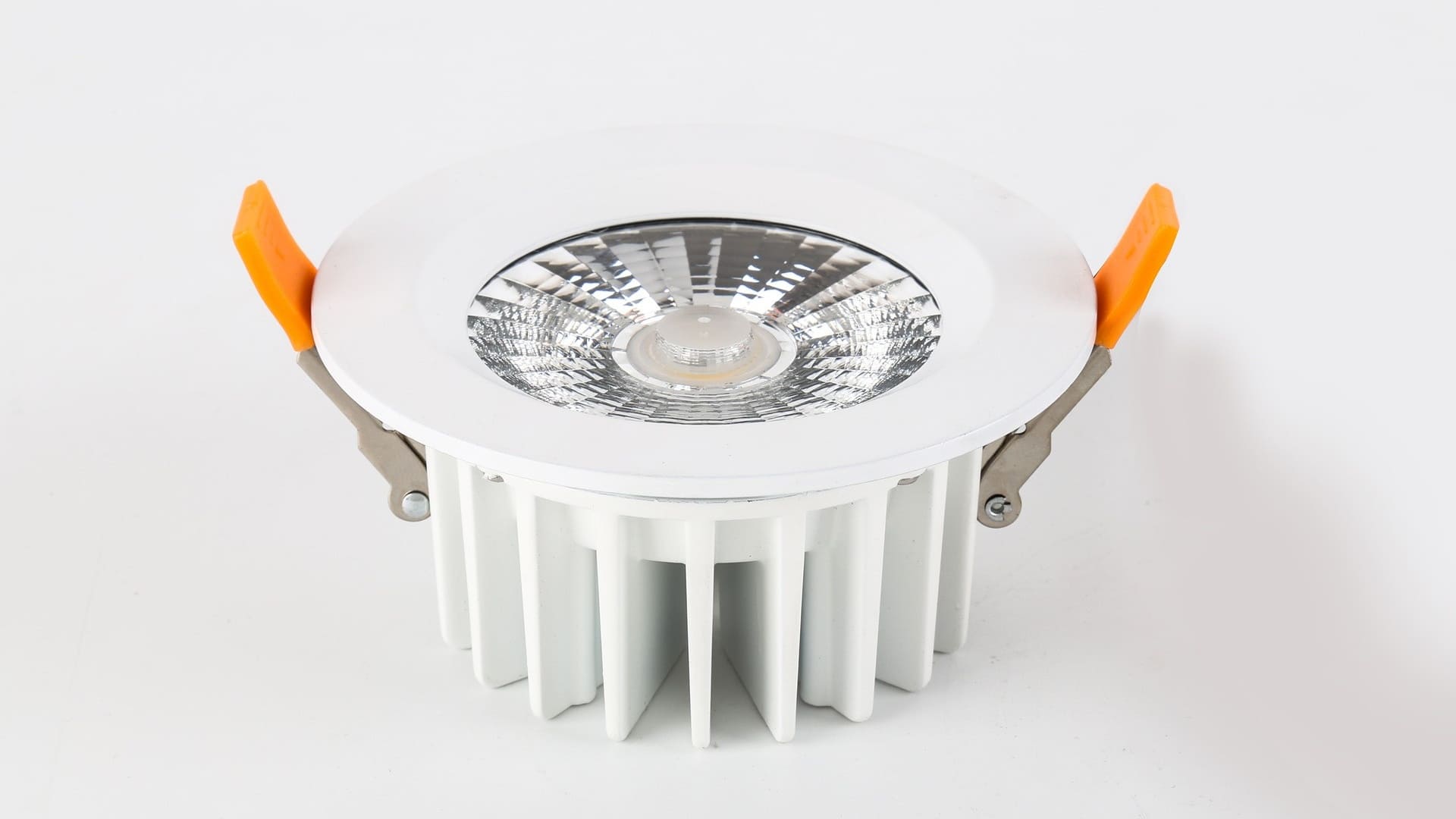

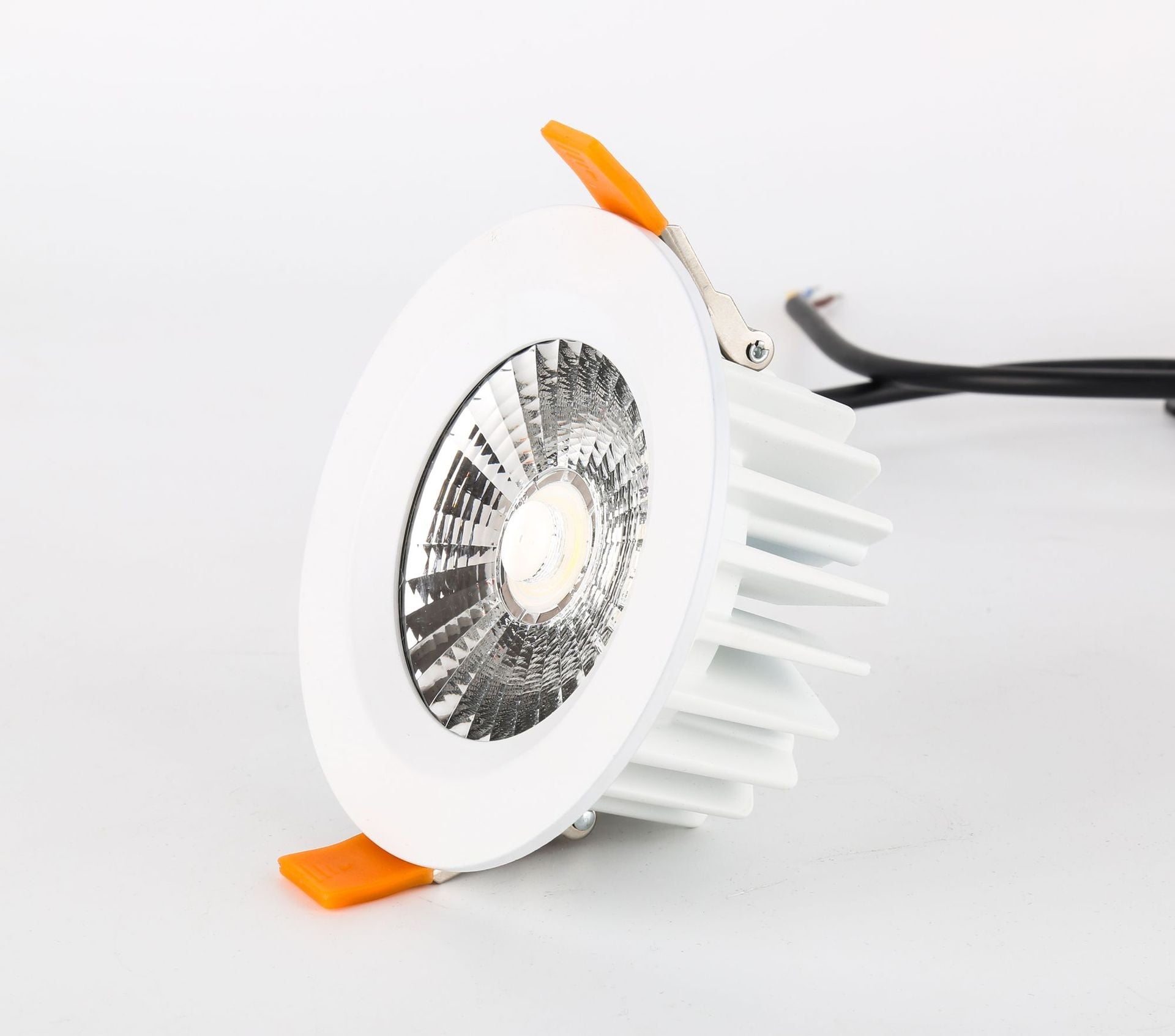

COB IP65 Recessed LED Downlight

WDC series are COB waterproof downlight with high lumen output, compact and elegant design. Unique structure of aluminium housing, excellent heat dissipation performance. IP65 rated version make it more stronger and wider use in an tough environment。

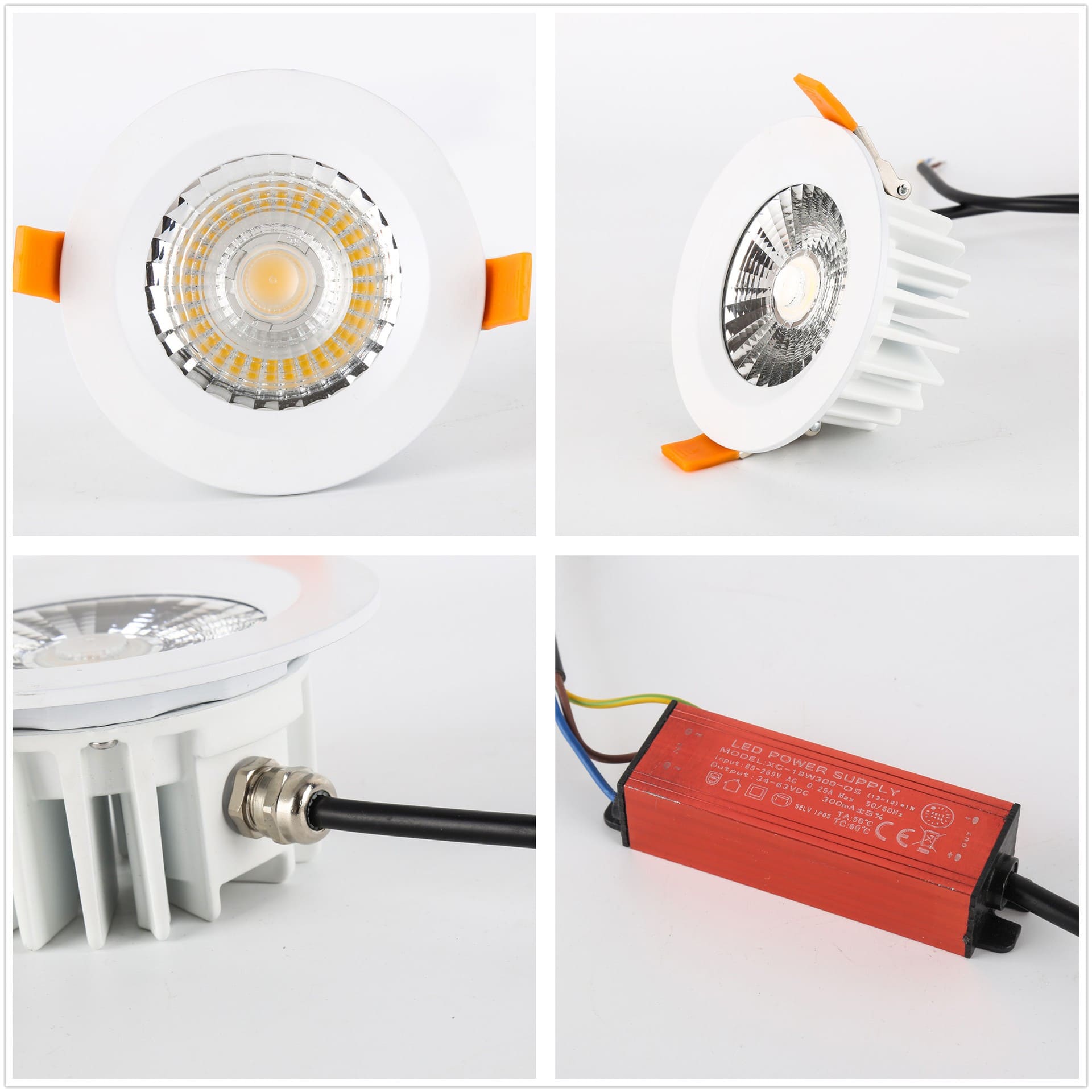

Construction & Materials

Die-casting aluminium housing.
Powder coating finish.
With high luminous efficiency COB LEDs can achieve a perfect lighting solution.
No UV or IR,can protect commodities properly, to avoid the color fading from radiation.
Waterproof LED driver is connected externally.
Easy for installation and maintenance.

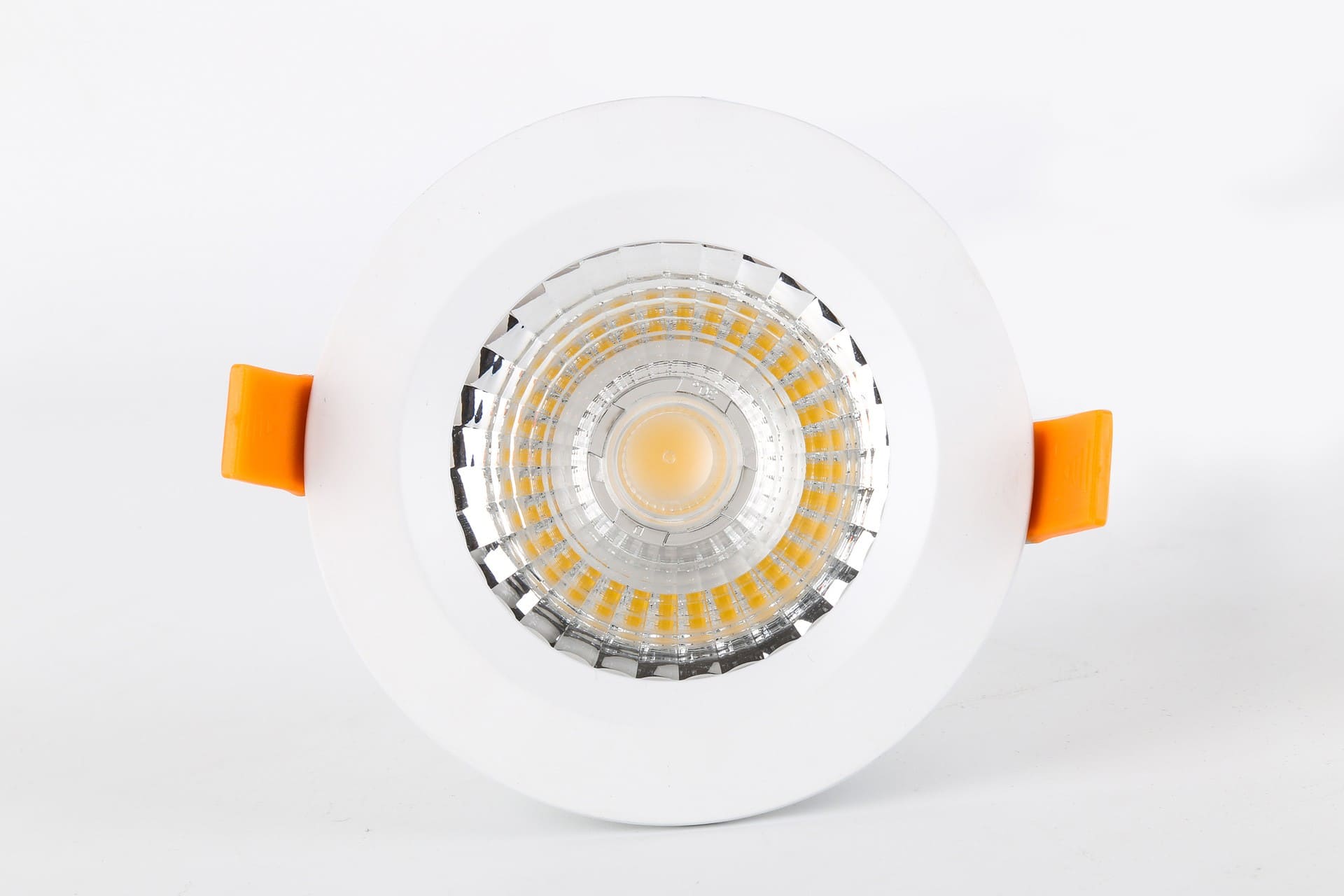

Fixed Downlight with a White/Black Bezel

Are you in the market for a sleek ceiling light to complement your bold statement pieces? If that’s the case, this LED downlight is perfect for you! Its elegant white/black bezel complements various design schemes, including contemporary, conventional, industrial, minimalist, monochromatic, and more!

Installation

To speed up the installation, we need to note about the precise cut-out hole. This series has a range of product diameter 95 mm-235 mm and requires 80 mm—220 mm cut-out hole. It’s mains-powered with a waterproof Led driver, eliminating the need for a separate transformer.

Other Dimension Wattage Parameters

Power	Product Diameter	Cut-out Hole
5 W-10 W	95 mm	80 mm-85 mm
12 W-18 W	115 mm	90 mm-95 mm
20 W-24 W	155 mm	115 mm-140 mm
