Integrated Solar Street Light
Integrated Solar Street Light
Integrated Solar Street Light
Integrated Solar Street Light

Integrated Solar Street Light

Model: YF-BML-12E-200W

Product Specifications

Material Die-casting Aluminum+Aluminum
Protection Level IP65
Light Efficiency 180 lm/W
Lifetime 100000 hrs
Light Source smd5050
CCT 2700k_6500k
Beam Angle 150°*70°
MOQ 100 pcs
Driver Brand No Driver
Sensor Yes
Warranty 5Years
Installation Wall Mounted, Standing Pole Mounted
WhatsApp

200W Integrated Solar Street Light—Bull Eye Series

Key Features of the solar street light

1.8 adjustable LED heads (120° each) cover 200㎡, eliminating shadows with 50% uniformity improvement.

2.Dual light/motion sensors auto-adjust brightness (100% when active, 30% standby), saving 60% energy.

3.APP controls each head individually (scheduling/dimming), cutting energy use by 40%.

4.Aerospace aluminum horns withstand Beaufort 14 winds, -40°C~70°C operation.

Light on Time: full light more than 15 hours, energy saving mode lights up for more than 48 hours.

Charging Time: 6-8h

Working Temperature: -30℃-+60℃

LED Brand: Philips

Installation Height: 6-8 meters

Apllication

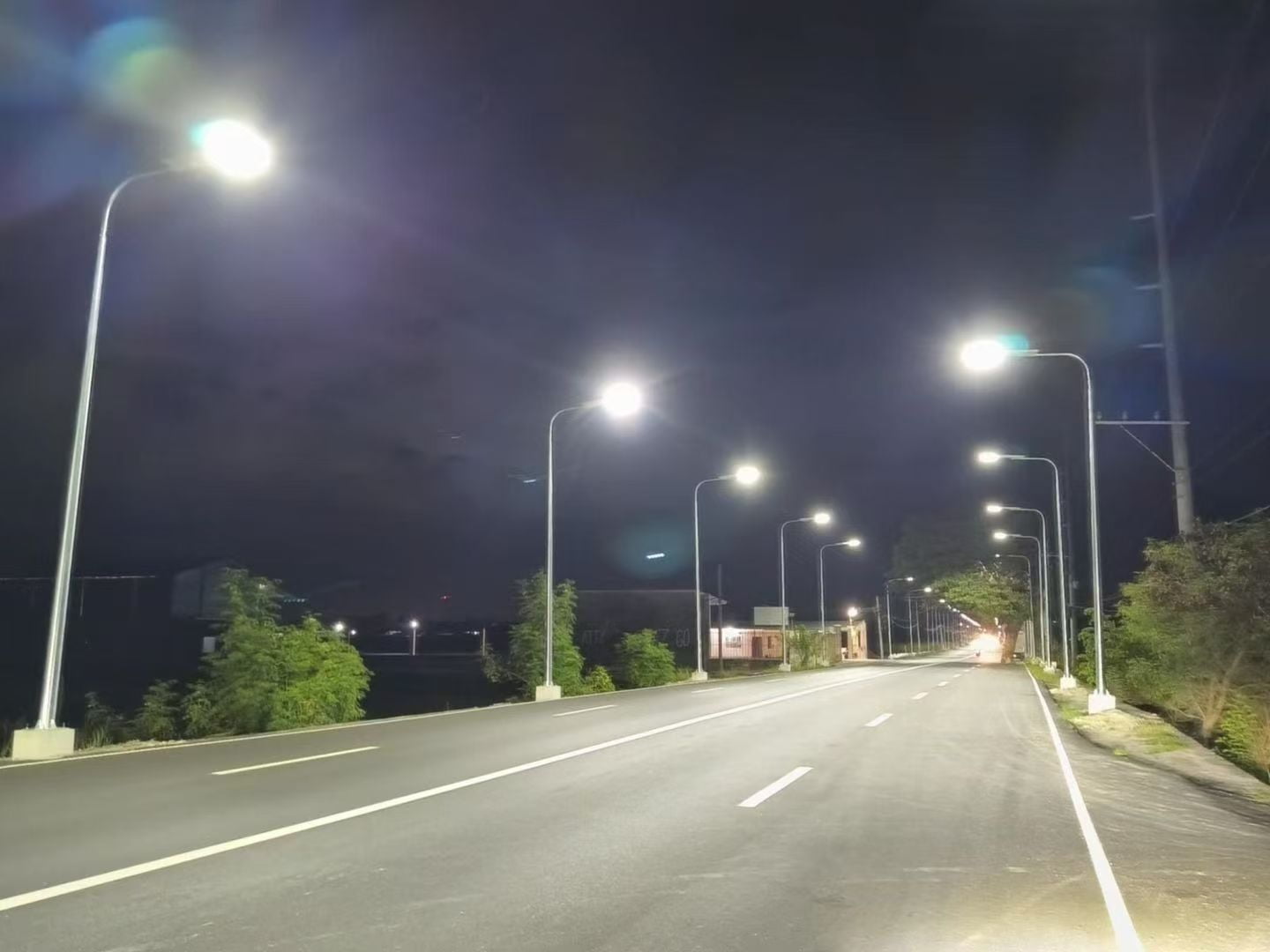

1.Lighting for intersections and underpasses to enhance traffic safety.

2.Wide-area lighting for industrial parks with reduced hardware deployment.

3.Adaptive lighting for winding mountain roads and slopes.

4.Event lighting with stage-grade effects via adjustable heads.

Advantages

1.Scalability: Network thousands of lights via cloud management.

2.Anti-Vandalism: Vandal-proof heads pass 10-ton crush tests.

3.Eco-Friendly: Reduces 3T CO₂ annually per light, aligns with smart city goals.



Power Solar Panel/Dimension Battery
100 W 18V60W/888*394*4mm 3.2V80AH

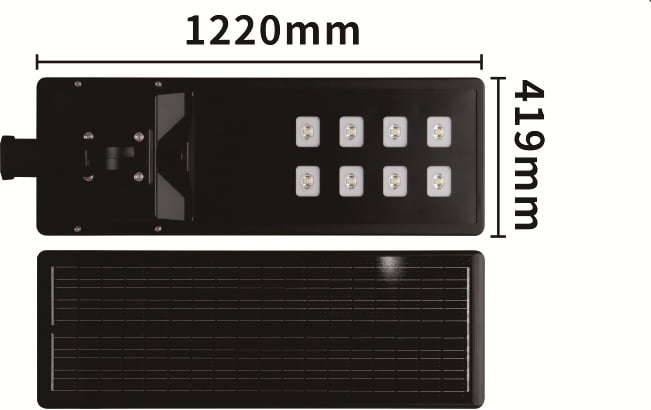

150 W 18V80W/1158*394*4mm 3.2V100AH
200W 18V100W/1358*394*4mm 3.2V120AH
250 W 18V120W/1708*394*4 mm 3.2V150AH
Solar panel 100W
Battery capacity 3.2V120AH
Luminous Flux 9000LM

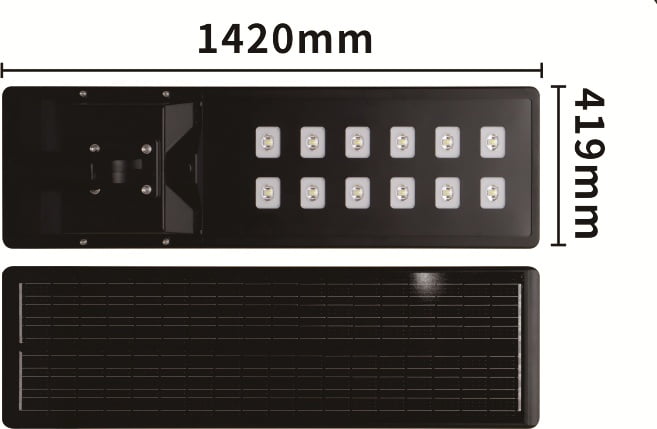

Size 1420*420*240MM
