Model: YF-ESS-10KWH

Product Specifications

Protection Level IP22
Lifetime 50000 hrs
Light Source do not exist
CCT do not exist
MOQ 5 pcs
Sensor No
Warranty 10Years
Installation Standing Mounted
WhatsApp

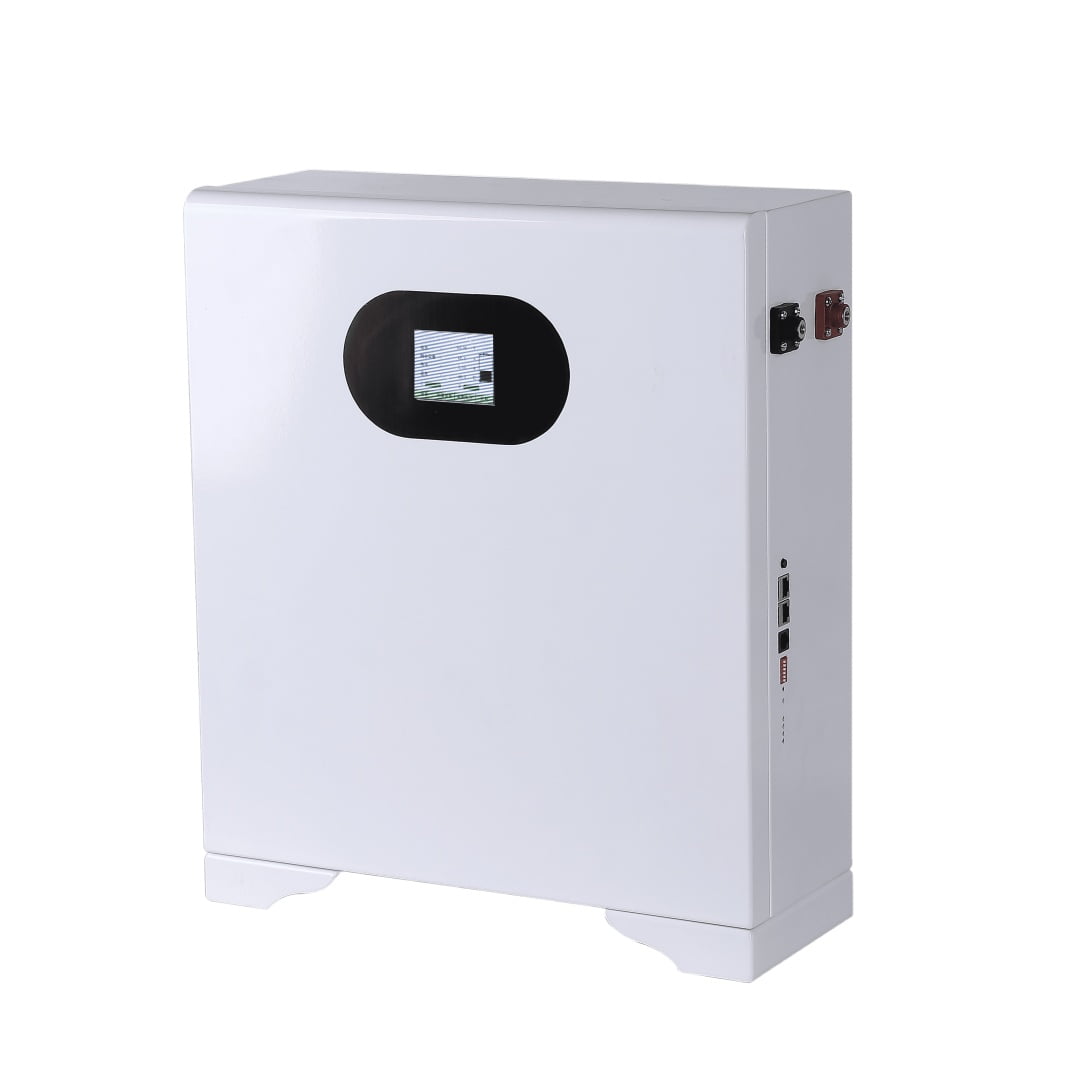

10kWh Lithium Battery Storage System

Key Features

1. 10kWh modular design, scalable up to 30kWh via parallel connection for flexible energy needs.

2.LiFePO4 battery cells with 6000+ cycles (80% DoD) and 10-year warranty for long-term reliability.

3.IP65 protection, explosion-proof design, and wide operating temperature (-20°C~55°C).

Application

1.Store solar energy for nighttime use, reducing grid dependence.

2.Emergency backup for hospitals, shops to prevent downtime

3.Off-grid power solutions for remote areas with solar integration.

4.Charge during low tariff periods, discharge at peak times to cut costs.

Advantages

1.Energy Saving: 95% round-trip efficiency minimizes waste.

2.Plug-and-Play: Pre-installed terminals enable 2-hour setup.

3.Eco-Friendly: Zero emissions, compatible with renewables

Power Battery
5KWH 16S LiFePO4 51.2V100Ah
10KWH 16S LiFePO4 51.2V200Ah
15KWH 16S LiFePO4 51.2V300Ah
Battery Type 16S LiFePO4 51.2V200Ah Battery
Nominal Capacity 200Ah
Rated Voltage 51.2V
Discharge Cut-off Voltage 44V
Charge Cut-off Voltage 58.4V
Float Voltage 56V
Max Continuous Charge Current 100A
Max Continuous Discharge Current 200A
Energy Capacity 10240Wh
Rated Output Power: 10000W
Communication Interface RS485/232
Discharge Temp. Range -20℃~55℃
Charge Temp. Range 0℃~45℃
Humidity Range 5%~90%
Altitude ≤4000m
Storage Time Maintain full charge at least every 3 months
Net Weight 89kg
Cycle Life 6000 Cycles
Dimensions (L*W*H) 565*180*715mm
