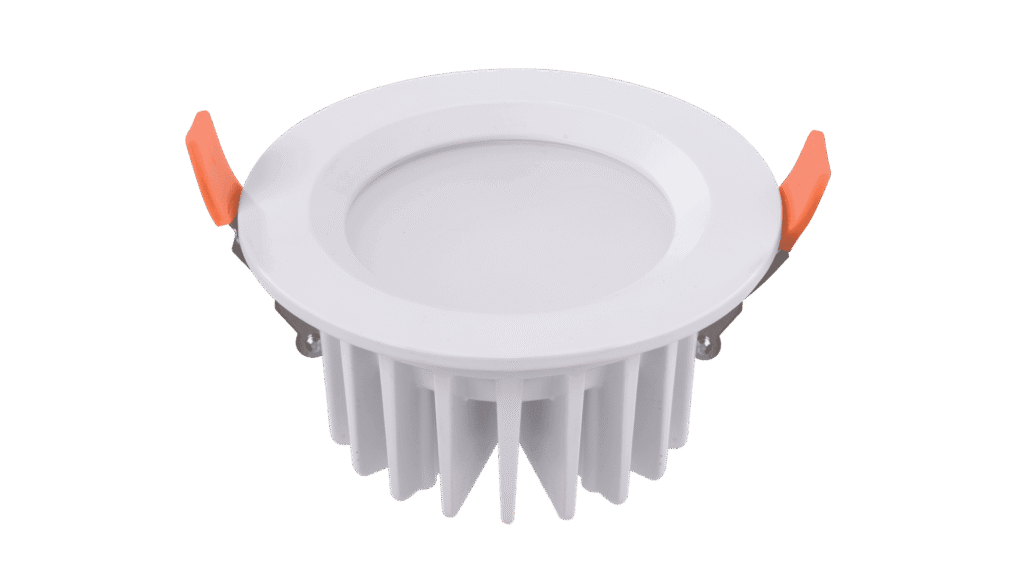

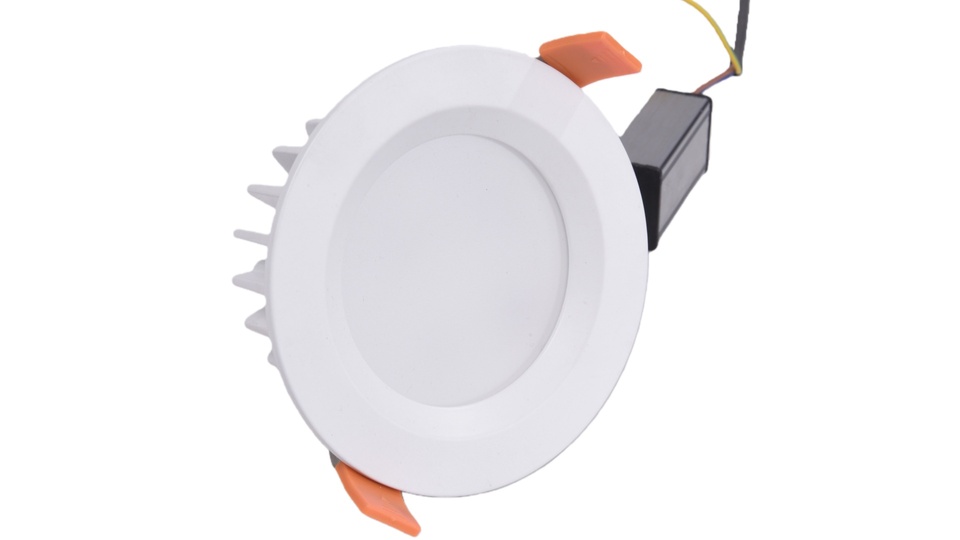

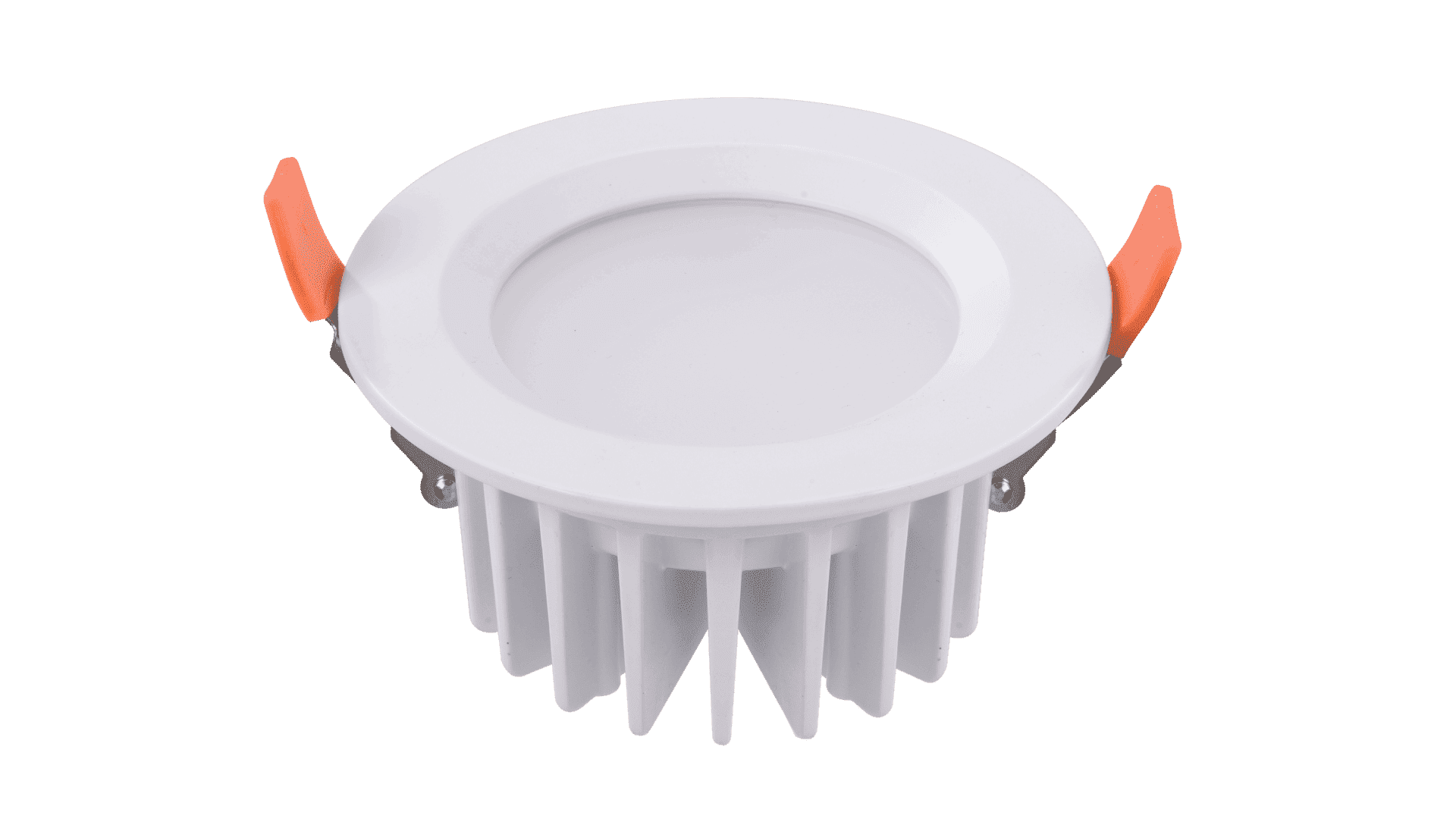

WDS SMD IP65 Recessed LED Downlight
WDS series is a SMD waterproof downlight with high lumen output, compact and elegant design. Unique structure of aluminium housing, excellent heat dissipation performance. IP65 rated version make it more stronger and wider use in an tough environment。
Construction & Materials

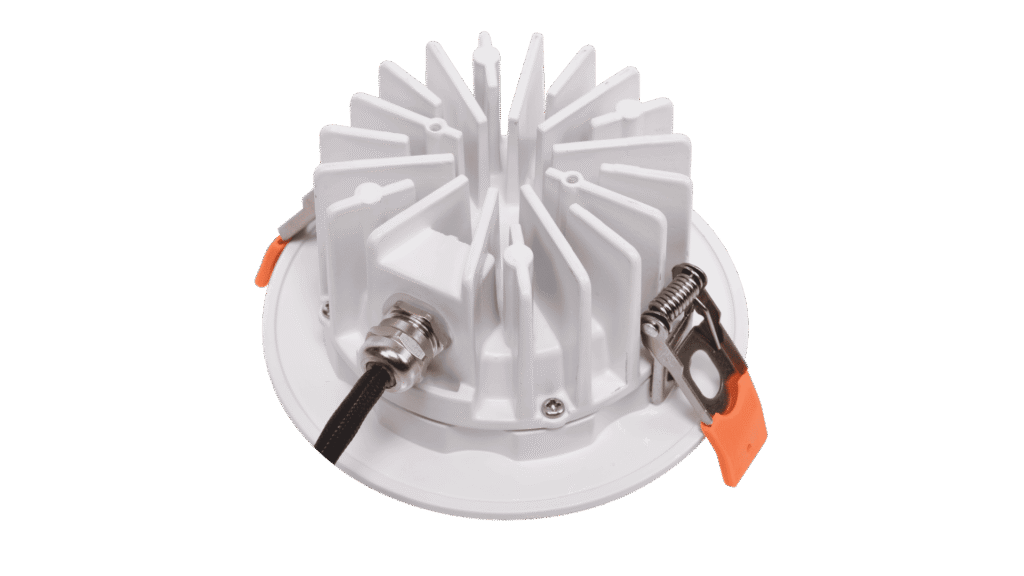

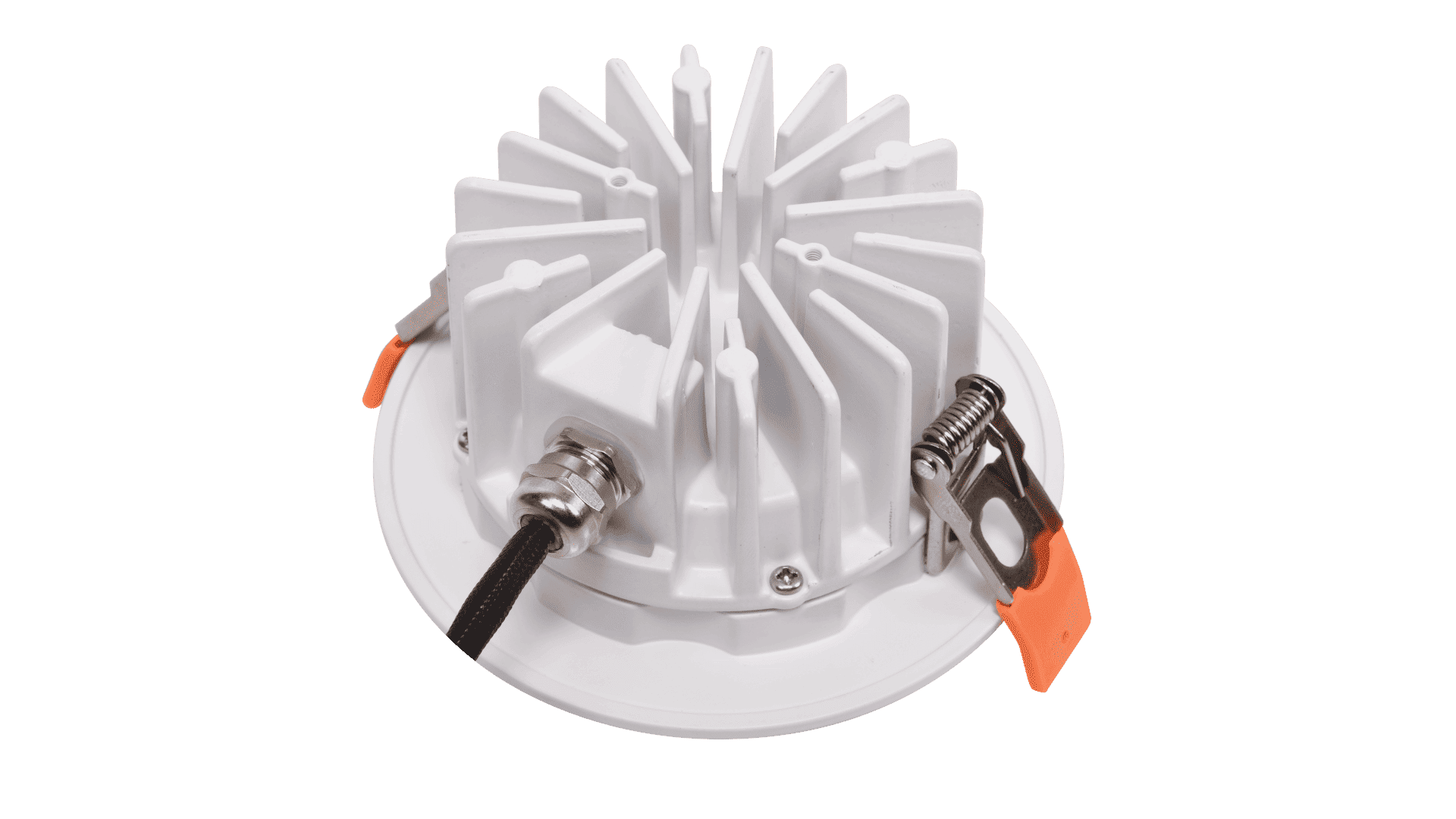

Die-casting aluminium housing.
Powder coating finish.
With high luminous efficiency SMD LEDs can achieve a perfect lighting solution.
No UV or IR,can protect commodities properly, to avoid the color fading from radiation.

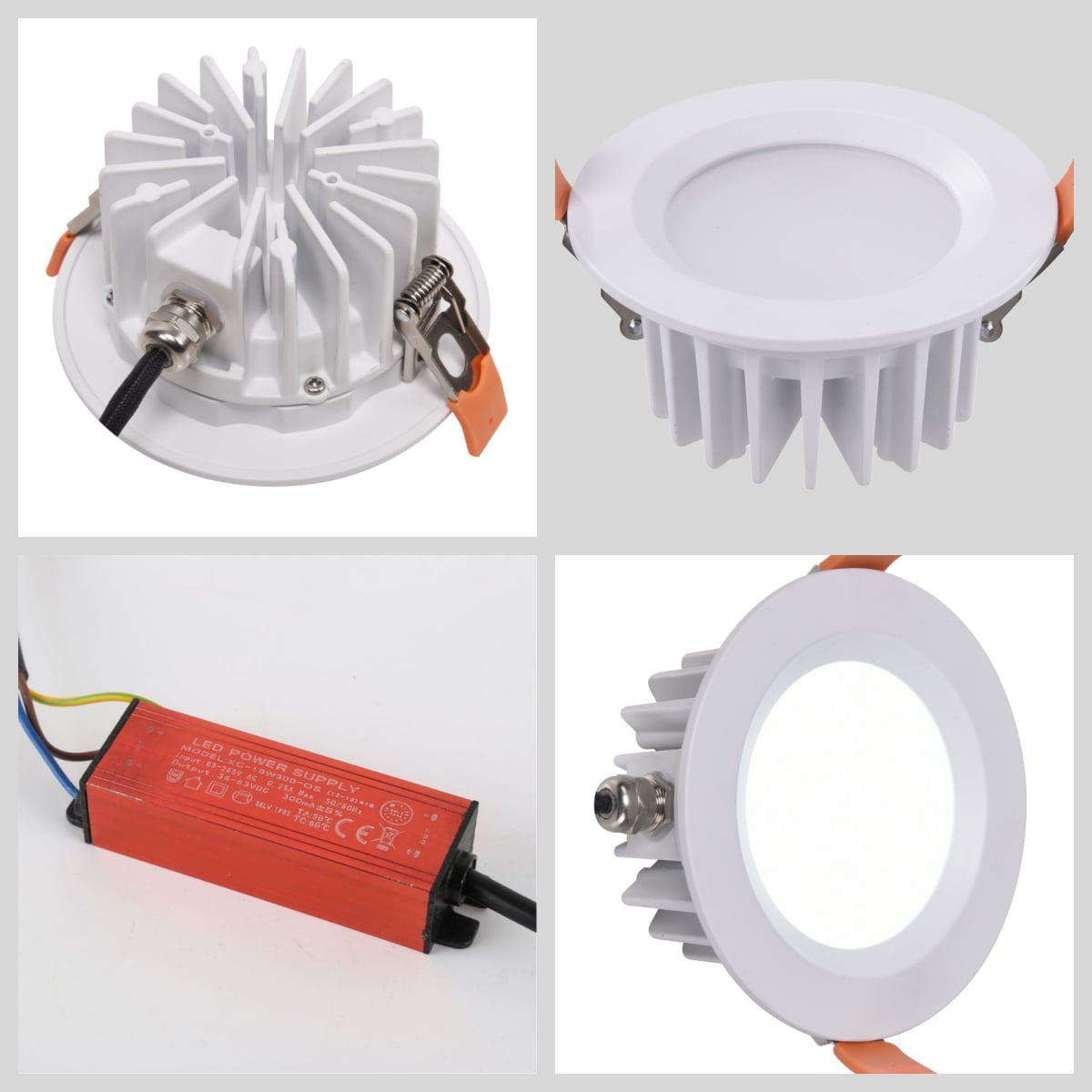

Waterproof LED driver is connected externally.
Easy for installation and maintenance.

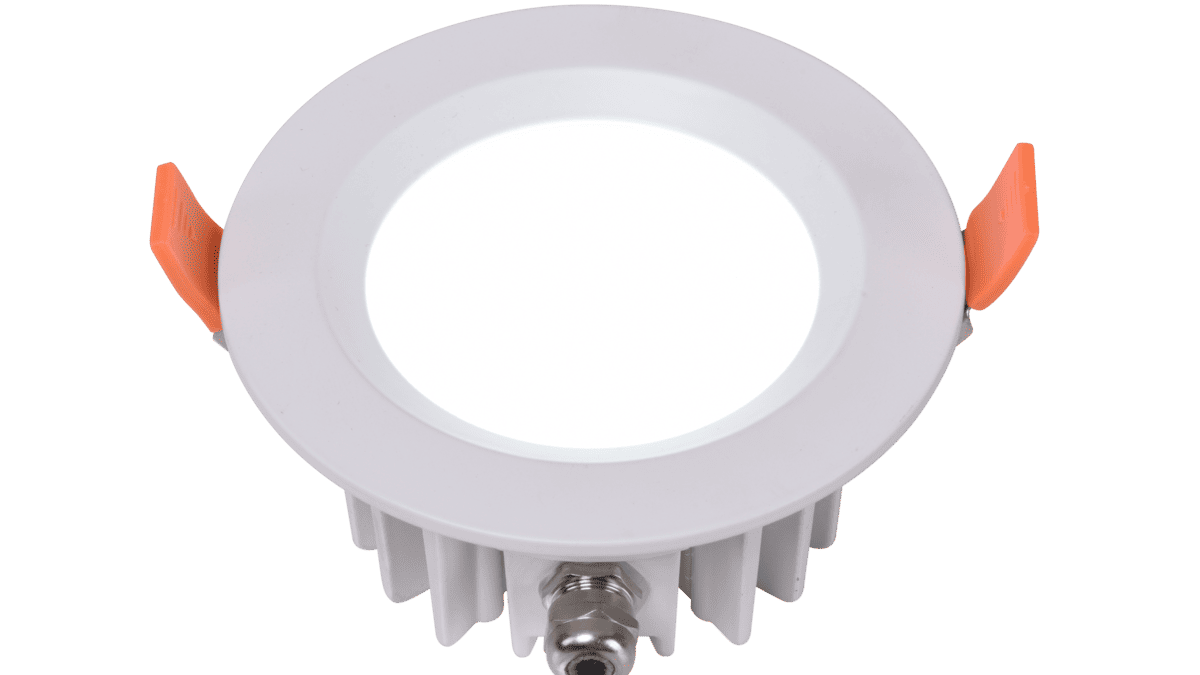

Fixed Downlight with a White/Black Bezel
Are you in the market for a sleek ceiling light to complement your bold statement pieces? If that’s the case, this LED downlight is perfect for you! Its elegant white/black bezel complements various design schemes, including contemporary, conventional, industrial, minimalist, monochromatic, and more!
Installation
To speed up the installation, we need to note about the precise cut-out hole. This series has a range of product diameter 95 mm-235 mm and requires 80 mm—220 mm cut-out hole. It’s mains-powered with a waterproof Led driver, eliminating the need for a separate transformer.
| Power | Product Diameter | Cut-out Hole |
|---|---|---|
| 5 W-10 W | 95 mm | 80 mm-85 mm |
| 12 W-18 W | 115 mm | 90 mm-95 mm |
| 20 W-24 W | 155 mm | 115 mm-140 mm |
| 25 W-30 W | 195 mm | 160 mm-180 mm |
| 30 W-40 W | 235 mm | 200 mm-220 mm |
