Premium B2B Lighting

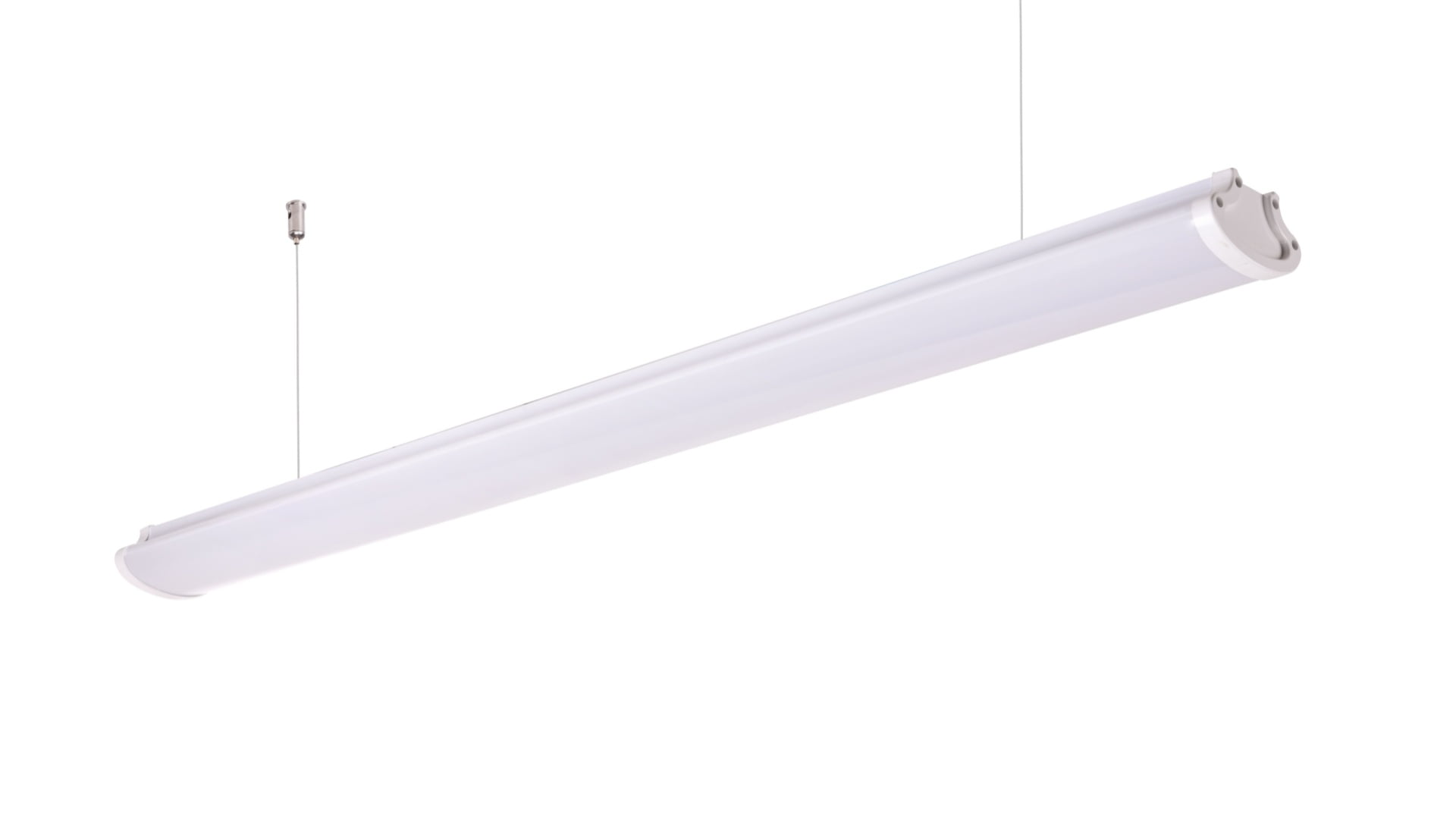

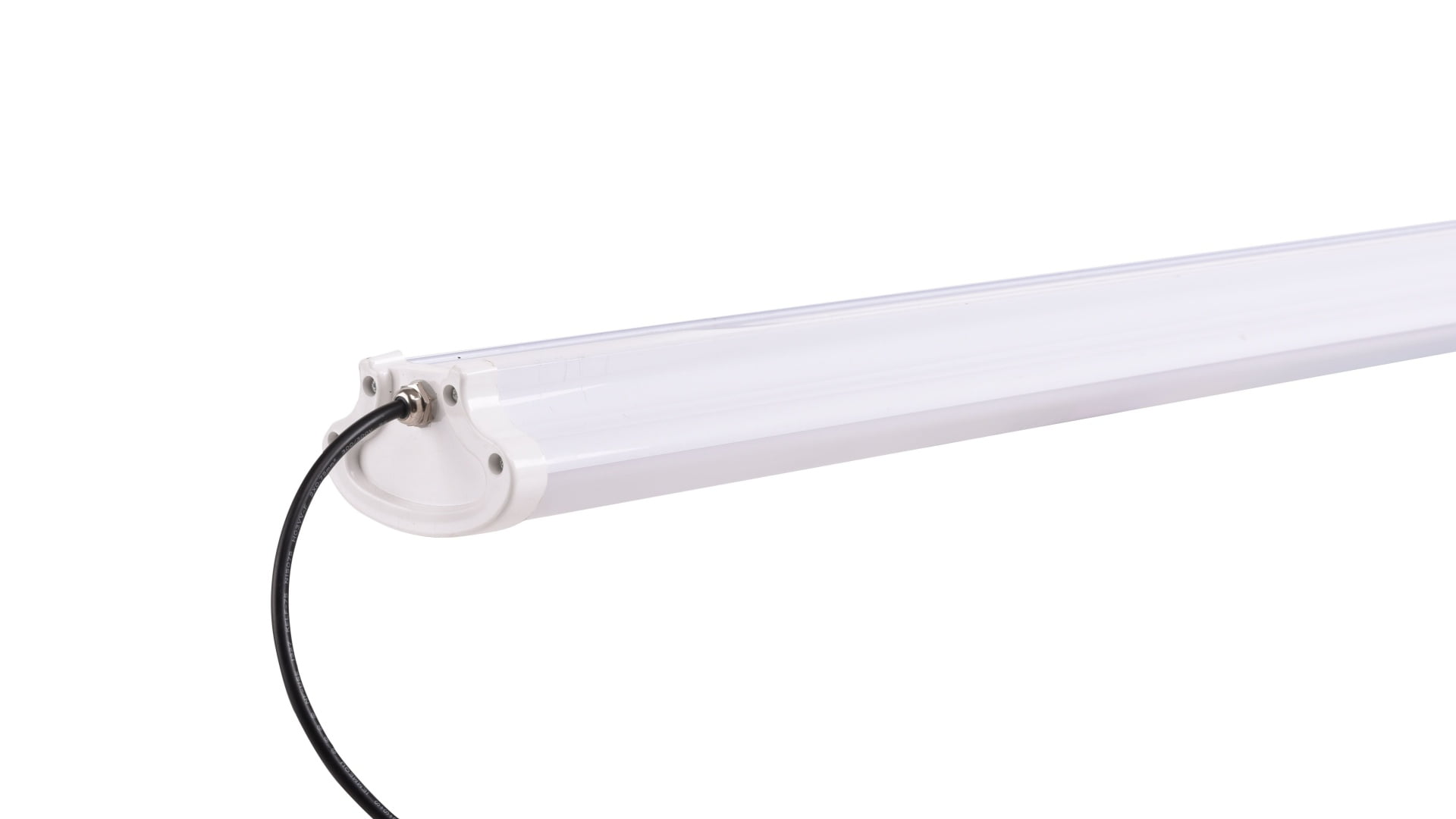

IP65 linear tri-proof light
Main Specifications
Model Number
TP19P2-L12
Material
PC Housing+Aluminium Plate Heat Sink+PC cover
Protection Level
IP65
Light Efficiency
110 lm/W
Lifetime
50000 hrs
MOQ
200
Light Source
Smd2835
CCT
2700k 6500k
Beam Angle
120°
Driver Brand
Other
Sensor
Yes, No
Warranty
3years
Installation
Suspended mounted, Ceiling mounted, Wall mounted
Chat on WhatsApp
Reply within 12 hours. Custom OEM/ODM available.
Hotsale IP65 Linear Tri-proof Light
1200cm 5940LM or higher Lumen Output
- Tri-proof is well known as it's waterproof, dustproof and corrosion proof, so they are usually highly recommended used in harsh commercial and industrial applications, such as: Production halls & factories Workshops & assembly lines Warehouses & distribution centres Parking garages & underground car parks
- Our own mould to make sure that these lineae LED tri-proof light fixtures are made using imported anti-oxidation PC material which can prevent from corrosion and yellowing, to provide high-performance and durability.
- Built-in extruded thick aluminium tube as heat sink, high brightness, low lumen depreciation, low energy consumption to make sure long-term performance.
Why Choose Linear LED Tri-proof Lights ?
- They're designed to work exceptionally in outdoor conditions, withstanding humidity, rain, high temperatures, and dust. so you can use them where the light fixtures are subject to direct or indirect water exposure. This means that they should be resistant to water showers and moisture accumulation. Linear LED Tri-proof light fixtures are perfectly sealed to prevent the accumulation of dust, which affects the performance of other lighting sources.
- Linear LED tri-proof lights provide a consistent light source with no flicker, reducing glare and stroboscopic phenomenon. These drawbacks lead to reduced visibility and affect focus in the workplace.
- They're easy to install, can be used using fixtures or directly from their wires for suspension installation, quickly transforming your light system into a reliable one.
And Why choose this model?
- This model is designed to be Upper mid-range, high-performance, premium heat dissipation and long term life-span. Linkable lighting for continuous light lines
- Simple structured for fast, tool-free installation. Up to 10 battens can be connected in series to form a continuous, high-output and even illumination — ideal for long aisles and large industrial surfaces.
How to Choose Linear LED Tri-Proof Lights?
- Choose from three power settings (27W / 54W / 72W ) and three correlated fixture length (2ft/ 4ft / 5ft) with color temperature range(2700K-6500K).
- Tailor the light to the task — neutral white for detailed workspaces, cooler white for warehouse aisles and logistics zones.
- Sensor(radar/body) function — designed specifically for parking garages where intelligent energy-efficient illumination is required.
Wattage & Dimension
| Power | Light Dimension |
|---|---|
| 27W | L*W*H: 600*105*70mm |
| 54W | L*W*H: 1200*105*70mm |
| 72 W | L*W*H: 1500*105*70mm |
| Parameter Name | Parameter Value |
|---|---|
| Power | 54 W |
| Luminous flux | 5940 Lumen |
| Input Voltage | AC85-265V 50/60Hz |
